NATURAL CONVECTION – REGULATION and ACCESSORIES

Regulation of the heating medium flow forms a central role in the correct control of convector heating output. Correct selection of regulation elements guarantees a comfortable ambient temperature and contributes to heating cost minimalization.

KORAFLEX FKO, FKT, FKB, FKP
KORALINE LKO, LKW, LKB, LKC, LKS, LKM, LDO, LDP
KORAWALL WK
KORASPACE
KORABASE

Dane techniczne Zapytanie

Ogrzewanie
Konwekcja naturalna

ACCESSORIES

Regulation is designed for all model lines with natural convection:
Outside temperature varies continuously during the heating period. Regulation elements are installed to the heating system to meet your desired ambient temperature and to eliminate the negative impact of outside temperature changes. Thanks to well-designed regulations the KORAFLEX, KORALINE, KORAWALL, KORASPACE and KORABASE model lines achieve optimal heating efficiency and considerable financial savings.

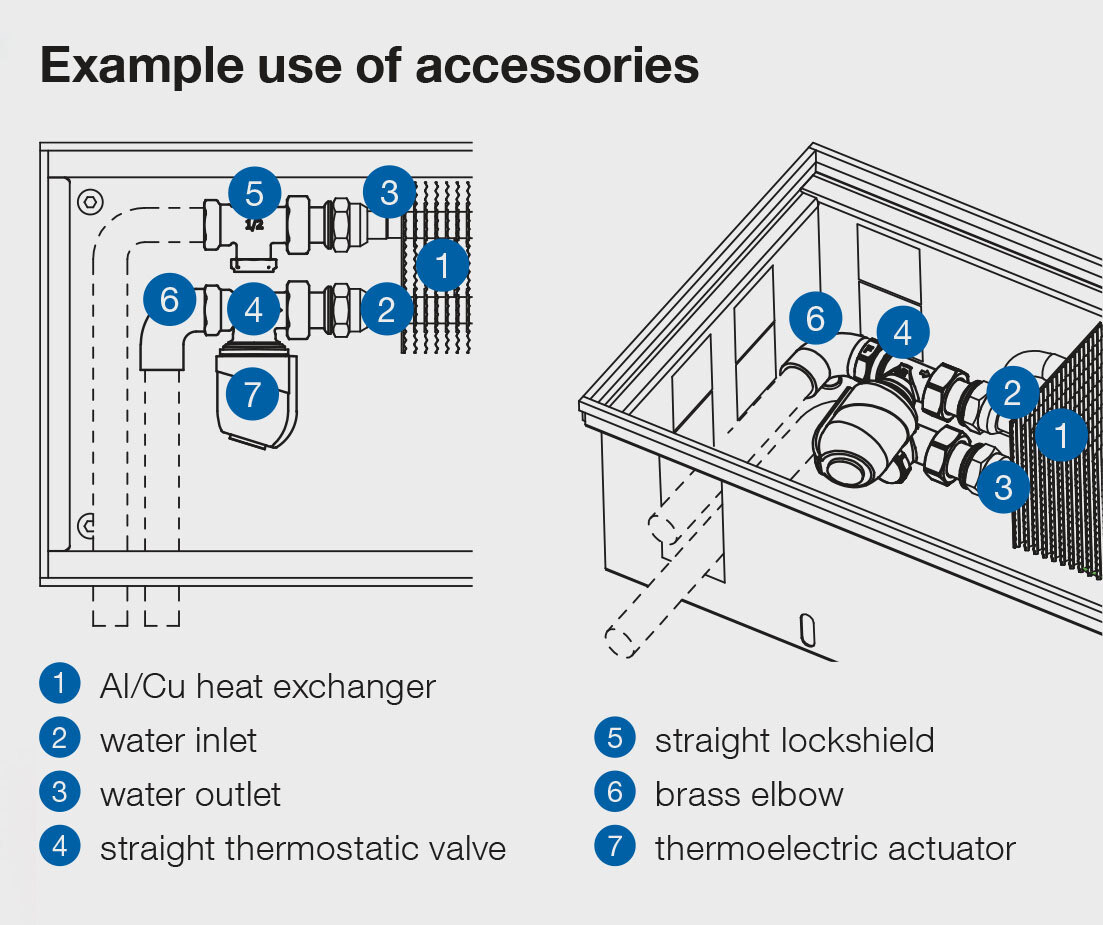

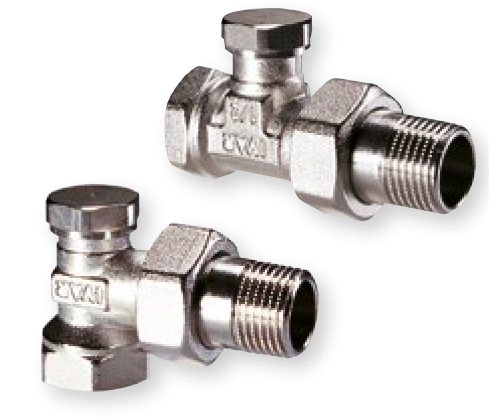

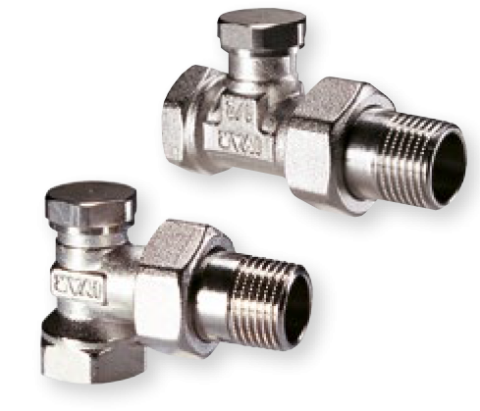

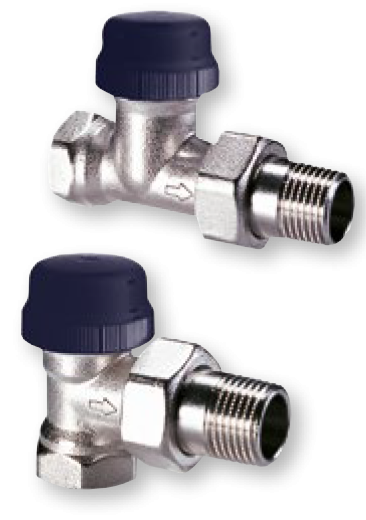

Lockshield optional accessory : KORAFLEX FK, KORALINE LK, LD, KORAWALL WK, KORABASE KORASPACE • elbow or straight • size ½" G • nickel-plated brass • max. operating pressure: PN 10 • max. operating temperature: 90 °C • order code: straight lockshield: REG-LS corner lockshield: REG-LA		Thermostatic valve optional accessory : KORAFLEX FK, KORALINE LK, LD, KORAWALL WK, KORABASE KORASPACE • elbow or straight • pre-set Kv values • size ½" G • connection thread M 30 × 1.5 • nickel-plated brass • max. operating pressure: PN 10 • max. operating temperature: 90 °C • order code: straight thermostatic valve: REG- TVS axial thermostatic valve: REG-TVA

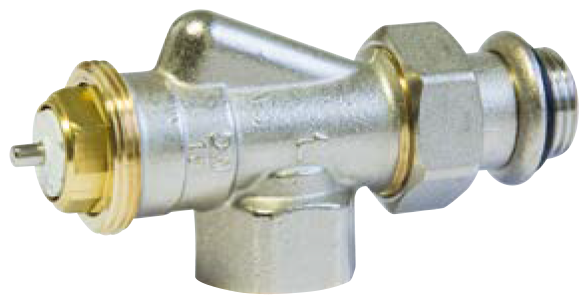

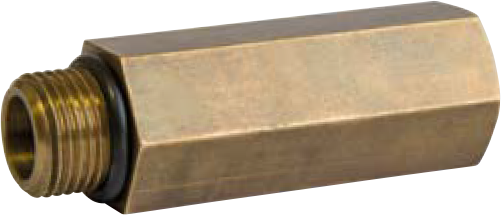

Axial thermostatic valve Standard delivery contents for: KORALINE LK, LD, optional accessory : *KORAFLEX FK* • maximum operating pressure: PN 10 • maximum operating temperature: 120 °C • connection type: M 30 × 1.5 • connection – pipes: 1/2" • connection – body: 1/2" – O-ring seal • Kvs value: 1,08 k • Kvs value: 1,08 • order code: REG-AVP The axial thermostatic valve is designed for KORALINE products. The valve is included as an accessory with all KORALINE bench heaters.		Extension nipple Standard contents for units over 150 mm in height KORALINE LK, LD, • length of extension 42.5 mm • used to align the height between the inlet and outlet of the fitting • heat exchanger: brass • connecting thread: inner G 1/2" • O-ring seal

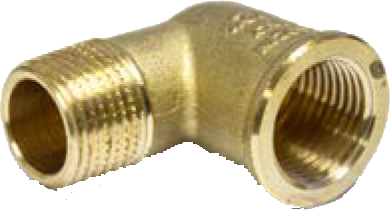

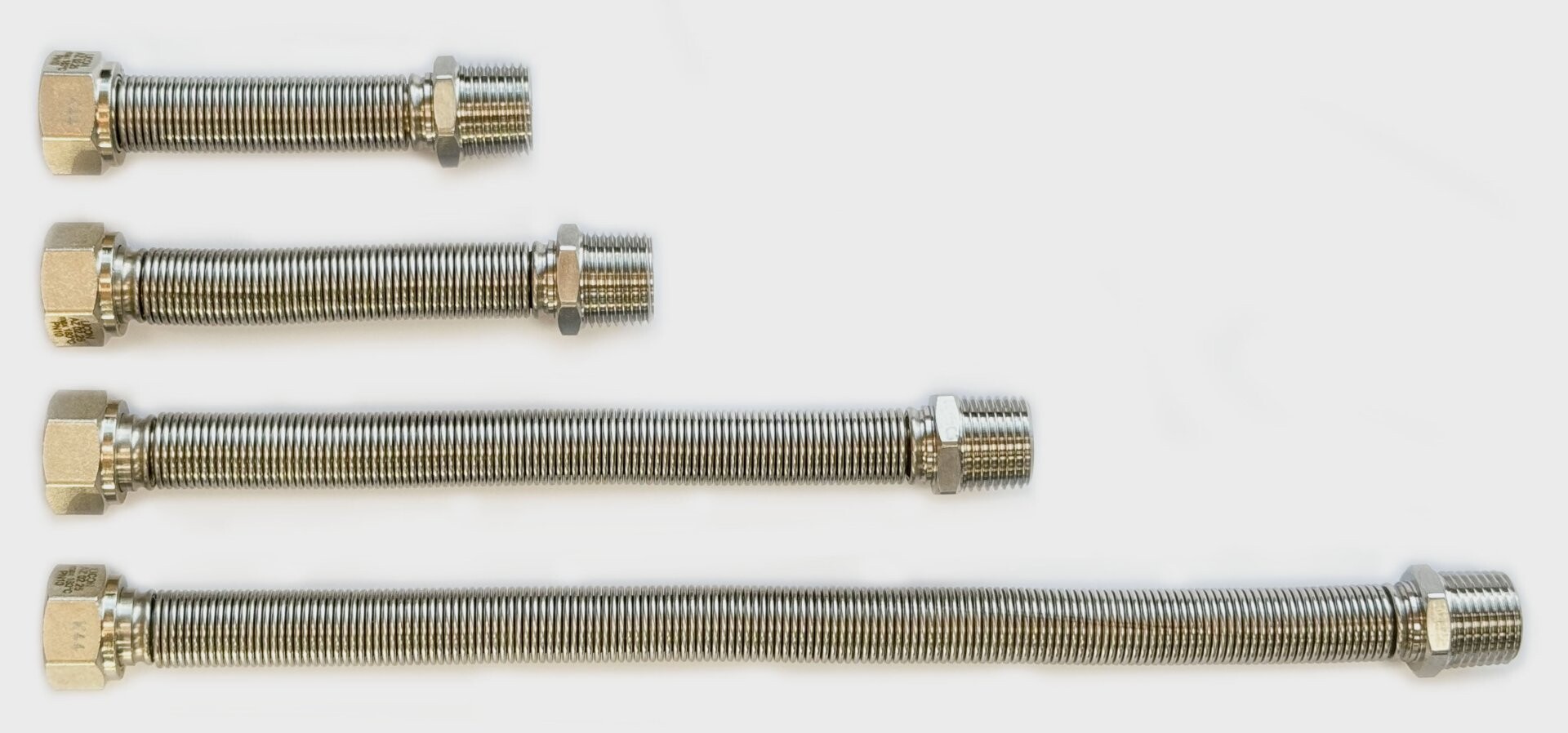

Brass elbow optional accessory : KORAFLEX FK, KORABASE KORASPACE • ½"×½" 90° without rim • order code: REG-E90		Flexible connecting hose optional accessory : KORAFLEX FK, KORABASE KORASPACE • stainless steel welded hose • lengths 10, 12, 20, 30 cm • end fitting with internal thread G½ (flat seal) • end fitting with external thread R½ (thread seal) • max. temperature 180 °C • PN 10 • order code (10 cm): REG-N10 • order code (12 cm): REG-N12 • order code (20 cm): REG-N20 • order code (30 cm): REG-N30

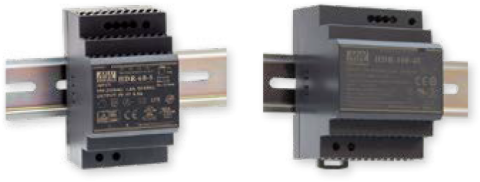

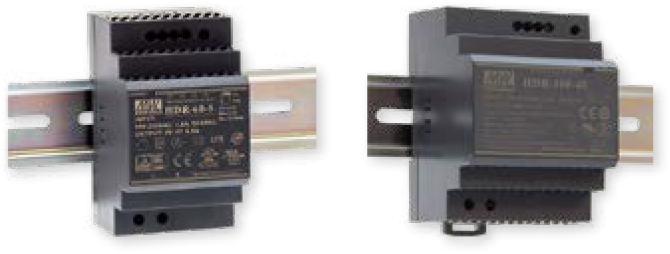

DC power supply 60 W, 100 W optional accessory KORAFLEX FK, KORALINE LK, LD, KORAWALL WK, KORABASE,KORASPACE • switch-mode DC power supply • silent operation, high efficiency • DIN rail assembly • IP 20 • order code: REG-PS60, REG-PS100	The size of the power supply is designed according to the sum of the power consumption of the thermoelectric actuators for one voltage source. Count 2W for one thermoelectric actuator. We recommend the output of the power supply is at least 20% more than the resulting sum input of the actuators for this power supply.

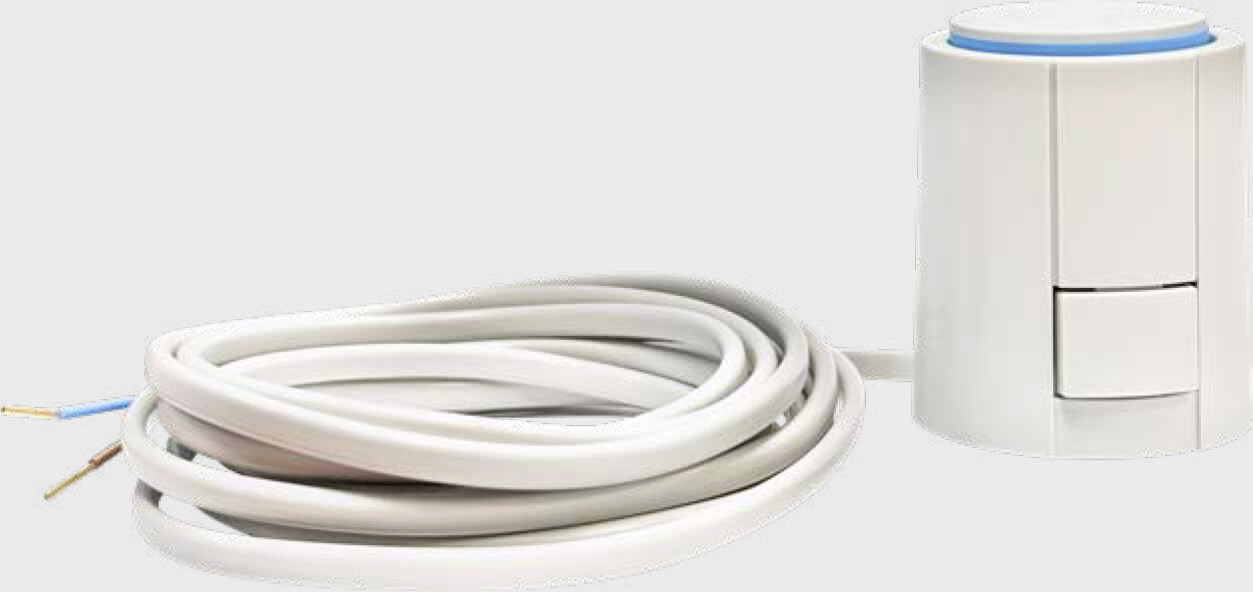

Thermoelectric actuator optional accessory *KORAFLEX FK, KORALINE LK, LD,* *KORAWALL WK, KORABASE* *KORASPACE* •I P rating IP 44 • reset time 4 min • unit height 65 mm • M 30×1.5 thread • cable length 1, 3 and 5 m • closed without voltage
TEP 230 KORAFLEX FK, KORALINE LK, LD, KORAWALL WK, KORABASE KORASPACE • supply voltage: 230 V AC • power consumption <2 W • order code: REG-TEP230-100 (TEP 230 cable 1m) • order code: REG-TEP230-300 (TEP 230 cable 3m) • order code: REG-TEP230-500 (TEP 230 cable 5m)	TEP 24 KORAFLEX FK, KORALINE LK, LD, KORAWALL WK, KORABASE KORASPACE • supply voltage: 24 V DC/AC • power consumption <2 W • order code: REG-TEP24-100 (TEP 24 cable 1m) • order code: REG-TEP24-300 (TEP 24 cable 3m) • order code: REG-TEP24-500 (TEP 24 cable 5m

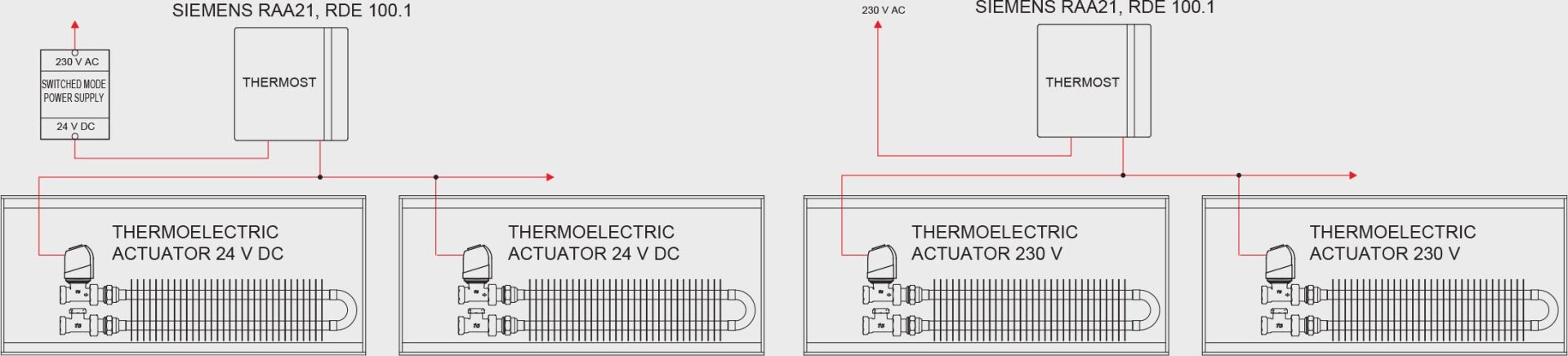

In order to set and regulate the required air temperature in heated rooms, trench heaters must be fitted with thermostatic heads with incorporated control and immersion sensors or thermoelectric actuators.

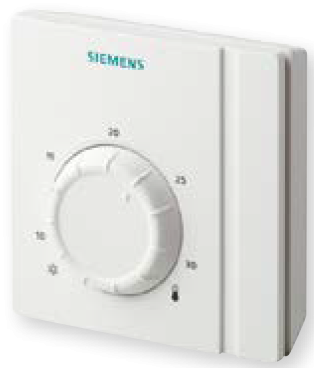

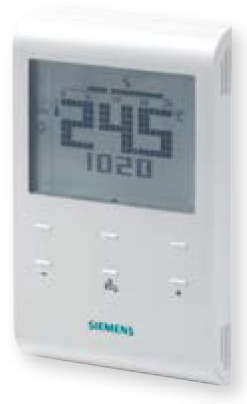

SIEMENS RAA21 room thermostat optional accessory *KORAFLEX FK, KORALINE LK, LD,* KORAWALL WK, KORABASE *KORASPACE* • for heating • 2-point ON/OFF control • switching voltage 24 V DC up to 230 V AC • gas-filled metal membrane • the required temperature is set manually using the control dial on the front of the thermostat • the range of adjustable temperatures may be limited mechanically using the pins accessible under the cover • IP 30 • dimensions (h×w×d) 97×96×35.3 mm • order code: REG-RAA21		SIEMENS RDE 100.1 room thermostat optional accessory *KORAFLEX FK, KORALINE LK, LD,* *KORAWALL WK, KORABASE* *KORASPACE* • for heating • 2-point ON/OFF • switching voltage: 24 V DC and 230 V AC • operation modes: comfort, low, protective and automatic with a timer program • adjustable configuration and control parameters • weekly timer program • battery powered: 3V DC (2 x 1.5 V DC) • IP 30 • dimensions (h×w×d) 127×85×21.5 mm • order code: REG-RDE100.1

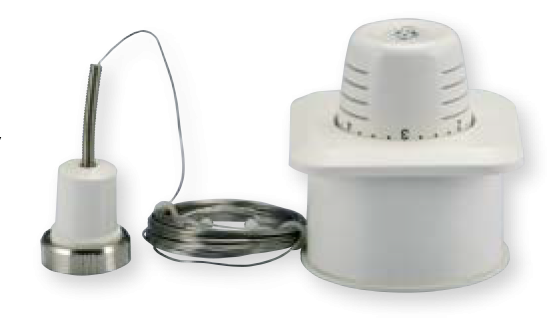

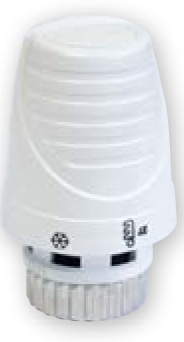

Thermostatic head with incorporated control and immersion remote sensor optional accessory *KORAFLEX FK, KORALINE LK, LD,* *KORAWALL WK, KORABASE* *KORASPACE* • control range 6.5–28 °C • wall-mounted • capillary length: 5 m • hysteresis: ≤0.6 °C • order code: REG-TH5		CLASSIC thermostatic head optional accessory *KORALINE LK, LD,* *KORAWALL WK, KORABASE* *KORASPACE* • control range 1–28 °C • hysteresis: 0.4 K • RAL 9016 white • connection type: M 30 × 1.5 • order code: REG-THC

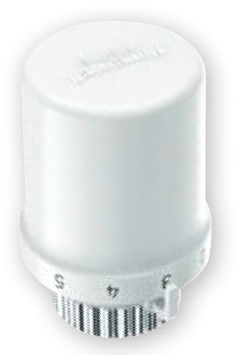

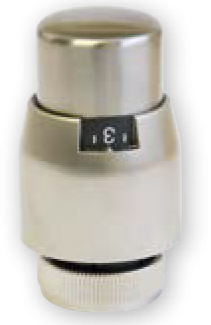

DESIGN thermostatic head optional accessory *KORALINE LK, LD,* *KORAWALL WK, KORABASE* *KORASPACE* • attractive design • matt finish • control range 1–28 °C • hysteresis: 0.25 K • connection type: M 30 × 1.5 • order code: REG-THD		Thermostatic head Thera 6 optional accessory *KORALINE LK, LD,* *KORAWALL WK, KORABASE* *KORASPACE* • control range 1–28 °C • hysteresis: 0.4 K • RAL 9016 white • connection type: M 30 × 1.5 • order code: REG-THC6

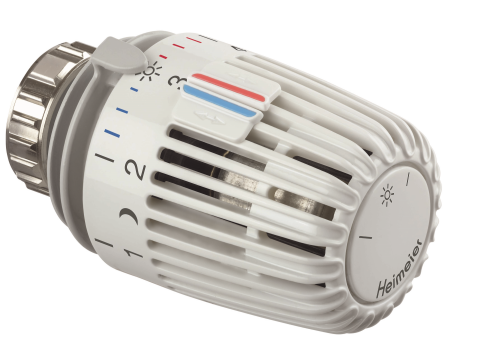

Thermostatic head (heating/cooling) optional accessory KORAWALL Direct WVD, Energy WVE • VT-score 0.20 • hysteresis 0,15 K • heating/cooling 6–28 °C • minimum tempering 8 °C • max. temperature lock • M 30 × 1.5 thread • max. water temp 120 °C • TELL-score (Thermostatic Efficiency Labelling) A • order code: REG-TCW
